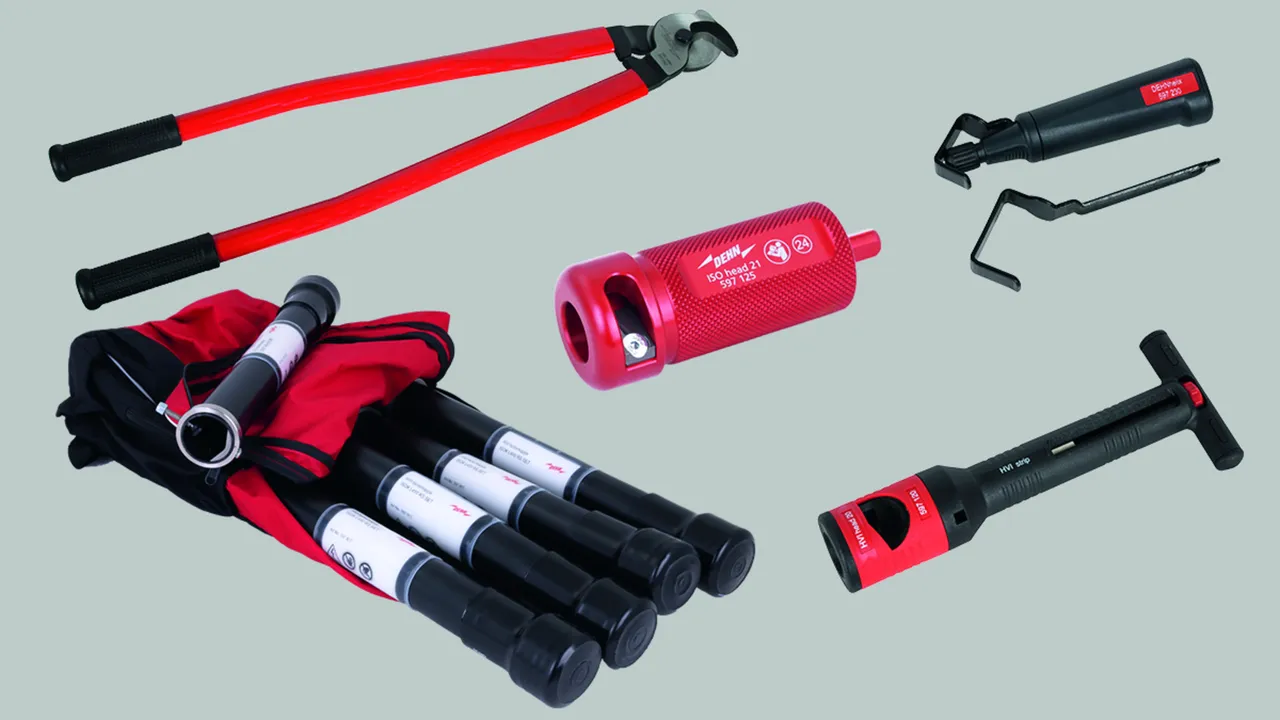

Tools and accessories

Here you will find Tools for the assembly of our high-voltage-resistant, insulated down conductors and the cutting head for installing the insulated connection elements and the accessories for HVI check.

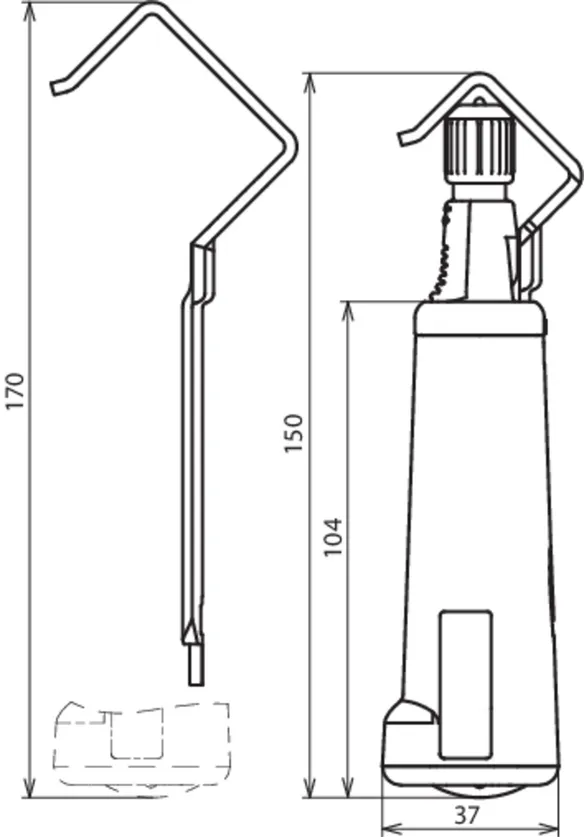

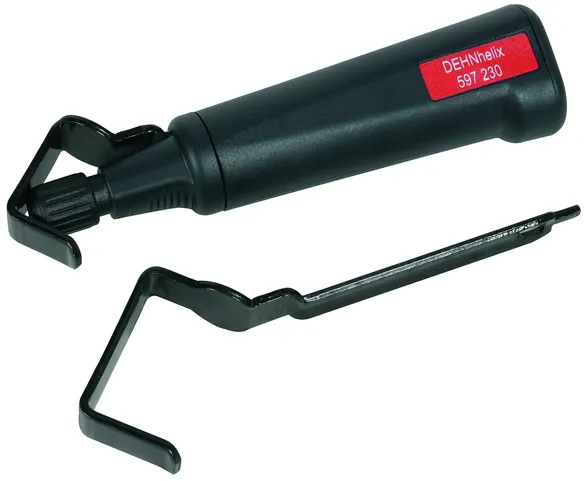

Stripping tool

1 Product

Part No. 597230 AW DEHNHELIX

GTIN 4013364155015, Customs tariff No. (EU): 82055980, Gross weight: 201.60 g, PU: 1.00 pc(s)

Images

Additional information


Diameter Ø conductor: 23 mm
Material of moulded part: Plastic
Material of blade: StSt
Colour: black ●
Dimensions: 37 x 150 / 170 mm

Brand: DEHN
Type: AW DEHNHELIX
Part No.: 597230
or equivalent.



Technical data

Diameter Ø conductor 23 mm
Material of moulded part Plastic
Material of blade StSt
Colour black ●
Dimensions 37 x 150 / 170 mm

Product 597230 was added to Notepad.

Go to Notepad

Product 597230 was added to the cart.

Go to Web-Shop

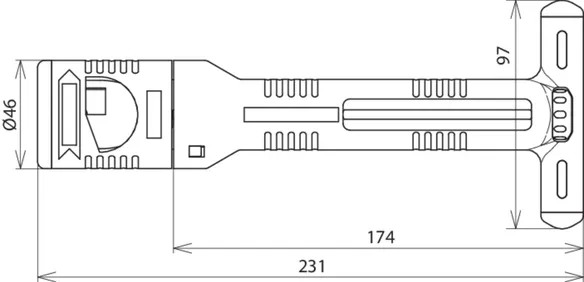

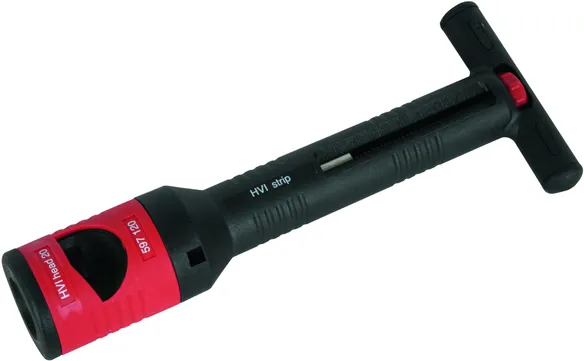

Stripping tool

1 Product

Part No. 597220 HVI STRIP 20

GTIN 4013364144972, Customs tariff No. (EU): 82055980, Gross weight: 330.00 g, PU: 1.00 pc(s)

Images

Additional information


Diameter Ø conductor: 20 mm
Material of moulded part: Plastic
Material of blade: StSt
Colour: black ● / red ●
Dimensions: approx. 231 x 97 mm

Brand: DEHN
Type: HVI STRIP 20
Part No.: 597220
or equivalent.



Technical data

Diameter Ø conductor 20 mm
Material of moulded part Plastic
Material of blade StSt
Colour black ● / red ●
Dimensions approx. 231 x 97 mm

Product 597220 was added to Notepad.

Go to Notepad

Product 597220 was added to the cart.

Go to Web-Shop

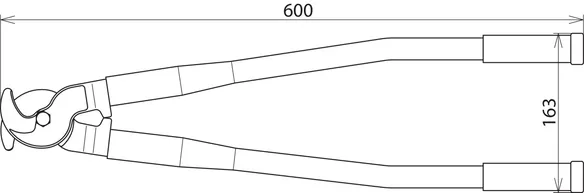

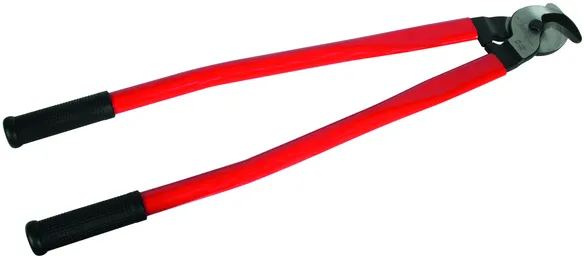

Cable shears

1 Product

Part No. 597032 HVI CUTTER 32

GTIN 4013364155008, Customs tariff No. (EU): 82033000, Gross weight: 1.49 kg, PU: 1.00 pc(s)

Images

Additional information

Cable shears
Cable shears for easy
cutting to length the HVI light Conductor,
HVI light plus, HVI Conductor
(outer dimension 20 / 23 mm)
and HVI power Conductor
(outer diameter 27 mm)
as well as for the CUI Conductor.
Diameter Ø conductor: to 32 mm
Material of knife: Tool steel (CR-Moly (SCM440))
Material of handles: Carbon steel (SS400)
Length: 600 mm
Weight: approx. 1.5 kg
Colour of handles: Red (similar to RAL 3020) ●

Brand: DEHN
Type: HVI CUTTER 32
Part No.: 597032
or equivalent.



Technical data

Diameter Ø conductor to 32 mm
Material of knife Tool steel (CR-Moly (SCM440))
Material of handles Carbon steel (SS400)
Length 600 mm
Weight approx. 1.5 kg
Colour of handles Red (similar to RAL 3020) ●

Product 597032 was added to Notepad.

Go to Notepad

Product 597032 was added to the cart.

Go to Web-Shop

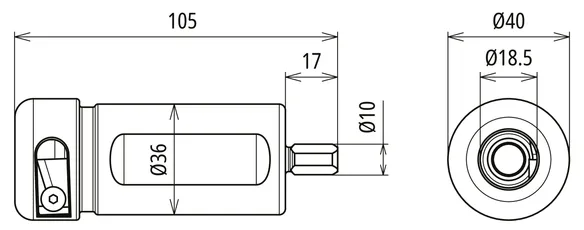

Cutting head

1 Product

Part No. 597125 ISO HEAD 21

GTIN 4013364513945, Customs tariff No. (EU): 82055980, Gross weight: 276.84 g, PU: 1.00 pc(s)

Images

Additional information

Cutting head
for installing the insulated
connection elements on
high-voltage-resistant,
insulated down conductors
Diameter Ø conductor: 21 mm
Material of moulded part: Al
Material of blade: Steel alloy
Colour: red ●
Dimensions: approx. 105 x 40 mm

Brand: DEHN
Type: ISO HEAD 21
Part No.: 597125
or equivalent.



Technical data

Diameter Ø conductor 21 mm
Material of moulded part Al
Material of blade Steel alloy
Colour red ●
Dimensions approx. 105 x 40 mm

Product 597125 was added to Notepad.

Go to Notepad

Product 597125 was added to the cart.

Go to Web-Shop

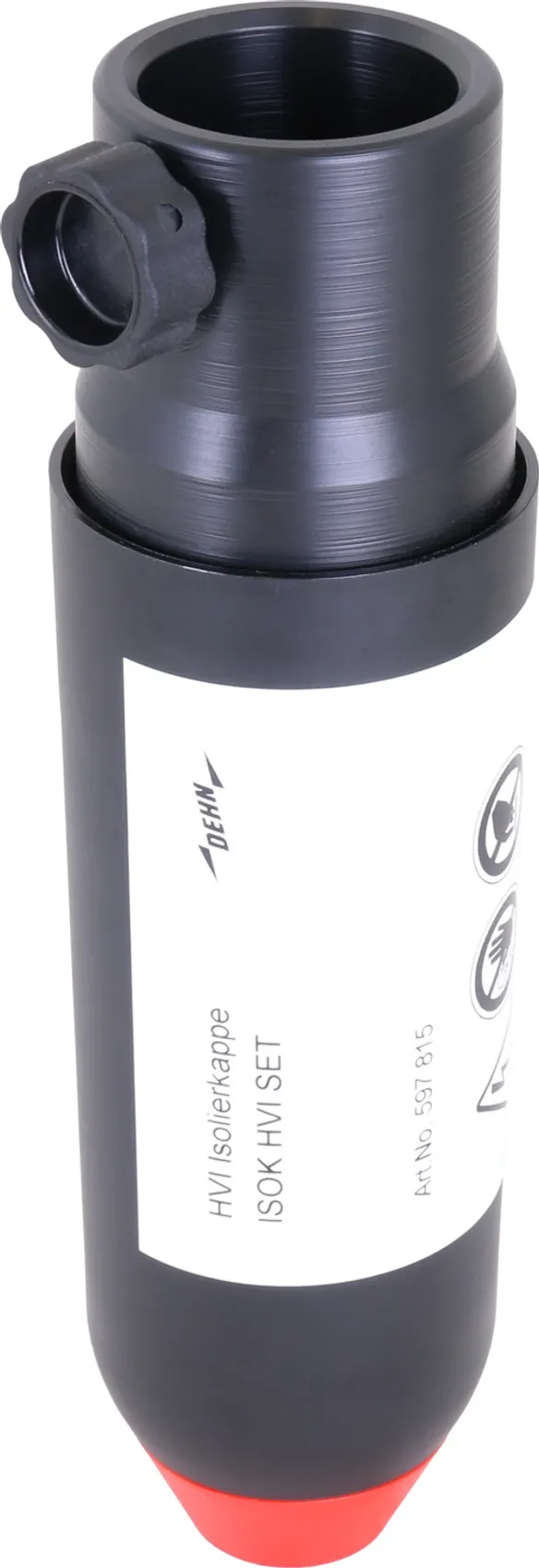

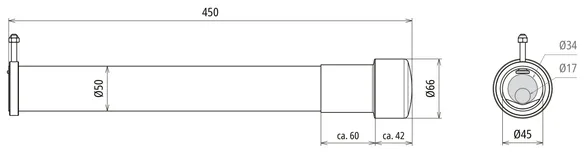

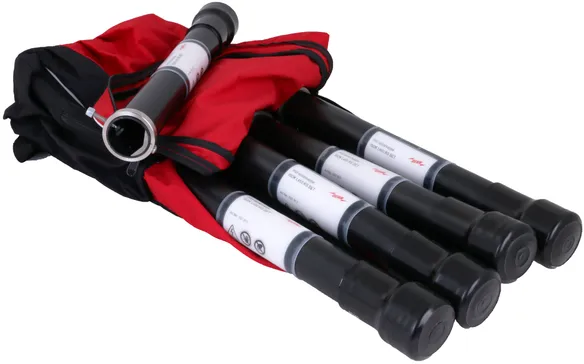

Insulating cap

1 Product

Part No. 597817 ISOK L450 RS SET

GTIN 4013364512597, Customs tariff No. (EU): 39269097, Gross weight: 400.00 g, PU: 1.00 pc(s)

Images

Additional information

Insulating caps for the dielectric withstand test
Insulating caps for the dielectric withstand test
on high-voltage-resistant
insulated down conductors
Kit: 5 pieces in a suitable
rucksack.
Colour: black
Opening: 34 mm
Suitable for: HVI light plus and HVI
Length: 450 mm
Material: Plastic

Brand: DEHN
Type: ISOK L450 RS SET
Part No.: 597817
or equivalent.



Technical data

Colour black
Opening (Ø) 34 mm
Suitable for HVI light plus and HVI
Length 450 mm
Material Plastic

Product 597817 was added to Notepad.

Go to Notepad

Product 597817 was added to the cart.

Go to Web-Shop
