DEHNrail modular

  • Two-pole surge arrester consisting of a base part and a plug-in protection module
  • High discharge capacity due to heavy-duty zinc oxide varistor / spark gap combination
  • Energy coordination with other arresters of the Red/Line product family
  • Operating state / fault indication by green / red indicator flag in the inspection window
  • Narrow (modular) design according to DIN 43880
  • Easy replacement of protection modules due to module locking system with module release button
  • Vibration and shock-tested according to EN 60068-2

Details

lorem ipsum

DEHNrail M 2P ...

Two-pole surge arrester consisting of a base part and a plug-in protection module.

5 Products

Part No. 953201 DR M 2P 30

GTIN 4013364109674, Customs tariff No. (EU): 85363030, Gross weight: 90.60 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

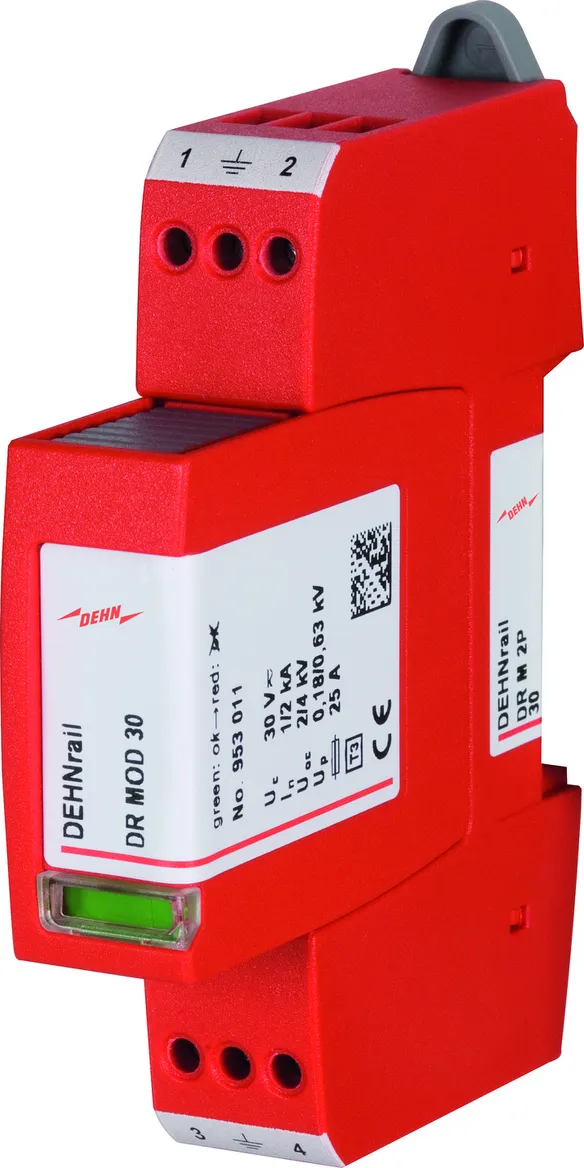

DEHNrail M 2P 30 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 30 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.18 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DR M 2P 30
Part No.: 953201
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 30 V
Nominal discharge current (8/20 µs) (In ) 1 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 2 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 180 / ≤ 630 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Product 953201 was added to Notepad.

Product 953201 was added to the cart.

Part No. 953202 DR M 2P 60

GTIN 4013364109681, Customs tariff No. (EU): 85363030, Gross weight: 91.80 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

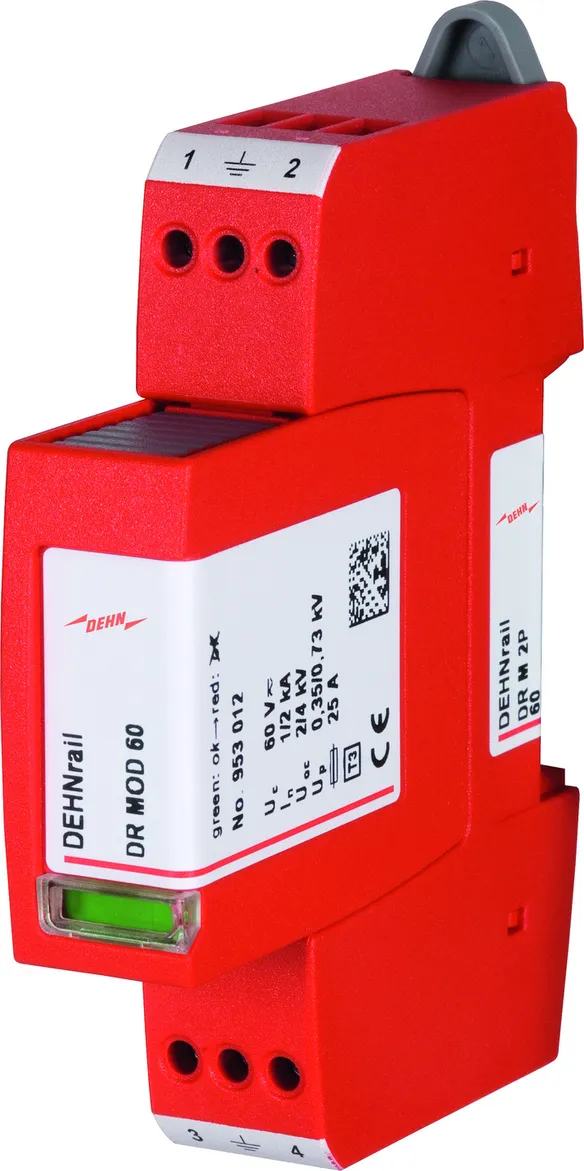

DEHNrail M 2P 60 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 60 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.35 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 60
Part No.: 953202
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 60 V
Nominal discharge current (8/20 µs) (In ) 1 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 2 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 350 / ≤ 730 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Product 953202 was added to Notepad.

Product 953202 was added to the cart.

Part No. 953203 DR M 2P 75

GTIN 4013364109698, Customs tariff No. (EU): 85363030, Gross weight: 89.80 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

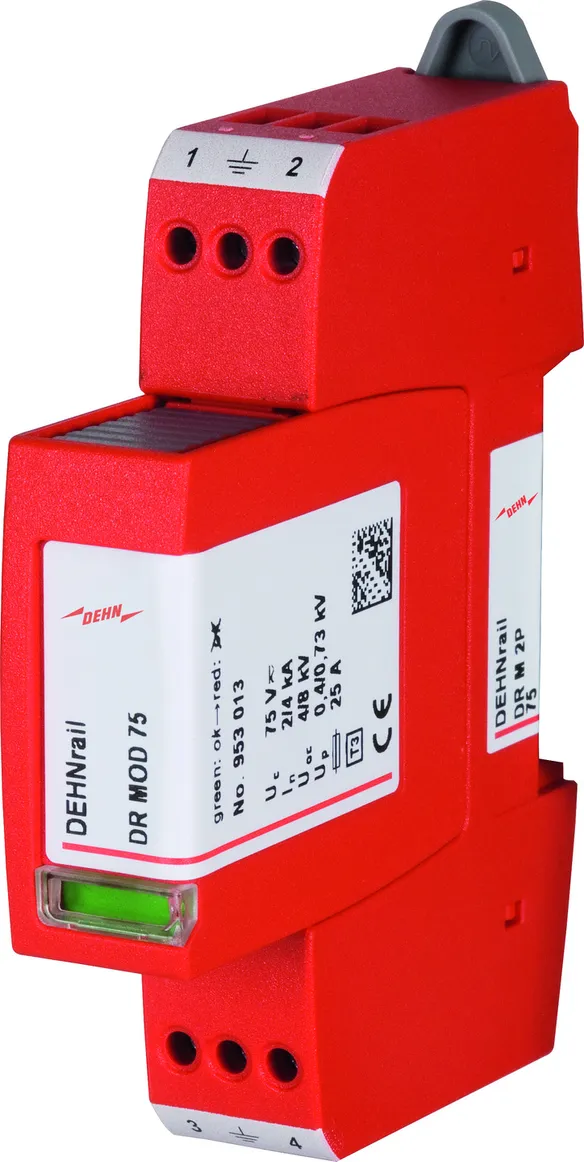

DEHNrail M 2P 75 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.4 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 75
Part No.: 953203
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 75 V
Nominal discharge current (8/20 µs) (In ) 2 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 4 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 400 / ≤ 730 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Product 953203 was added to Notepad.

Product 953203 was added to the cart.

Part No. 953204 DR M 2P 150

GTIN 4013364109704, Customs tariff No. (EU): 85363030, Gross weight: 90.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

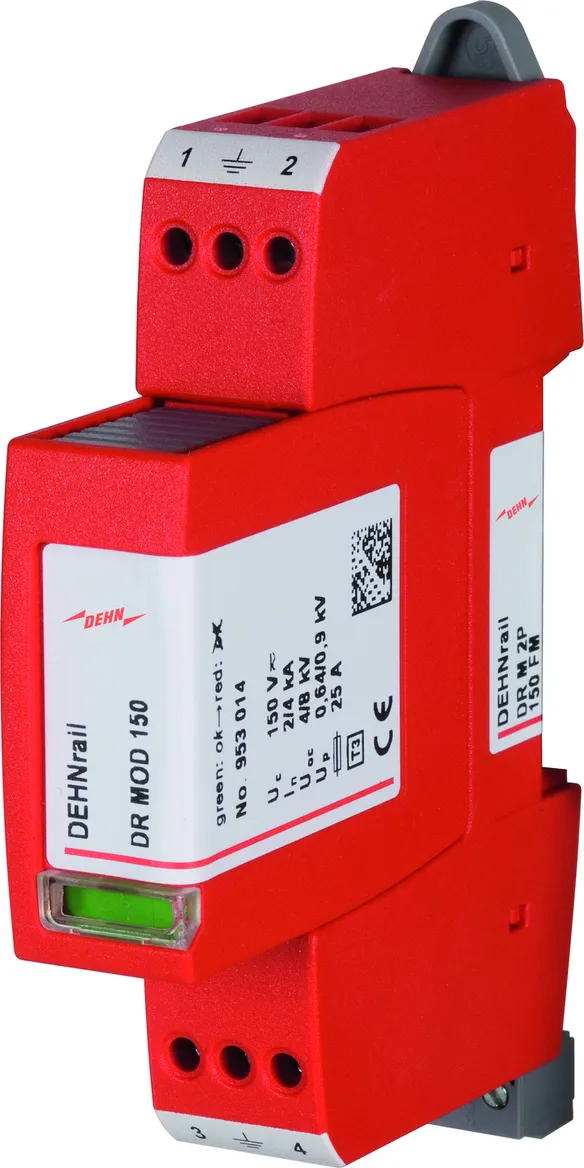

DEHNrail M 2P 150 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.64 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 150
Part No.: 953204
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 150 V
Nominal discharge current (8/20 µs) (In ) 2 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 4 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 640 / ≤ 800 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Product 953204 was added to Notepad.

Product 953204 was added to the cart.

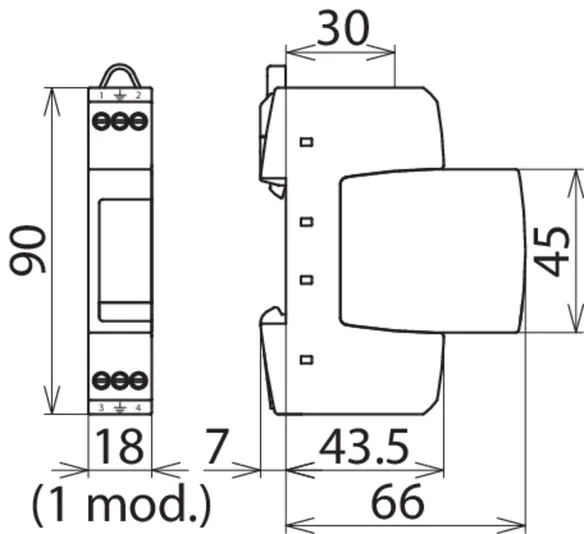

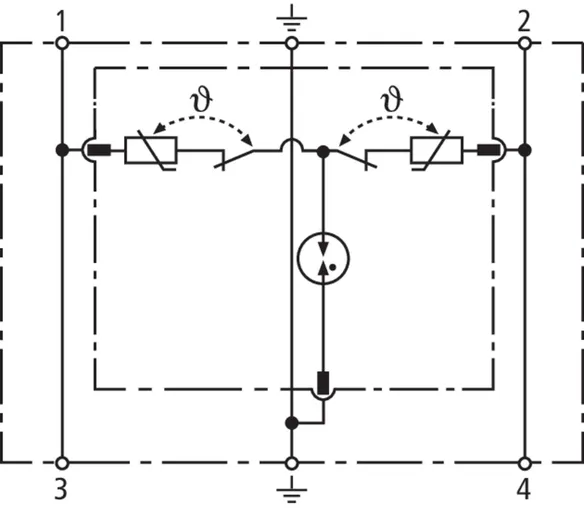

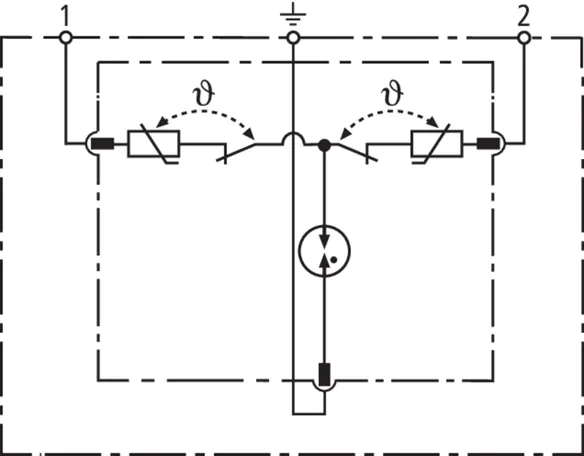

Part No. 953200 DR M 2P 255

GTIN 4013364108301, Customs tariff No. (EU): 85363030, Gross weight: 91.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

DEHNrail M 2P 255 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 255 V a.c./d.c.
Total discharge current: 5 kA
Voltage protection level (L/N): < 1.25 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 255
Part No.: 953200
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 255 V
Nominal discharge current (8/20 µs) (In ) 3 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 5 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx

Product 953200 was added to Notepad.

Product 953200 was added to the cart.


DEHNrail M 2P ... FM

Two-pole surge arrester consisting of a base part and a plug-in protection module; with floating remote signalling contact.

5 Products

Part No. 953206 DR M 2P 30 FM

GTIN 4013364109711, Customs tariff No. (EU): 85363030, Gross weight: 94.50 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

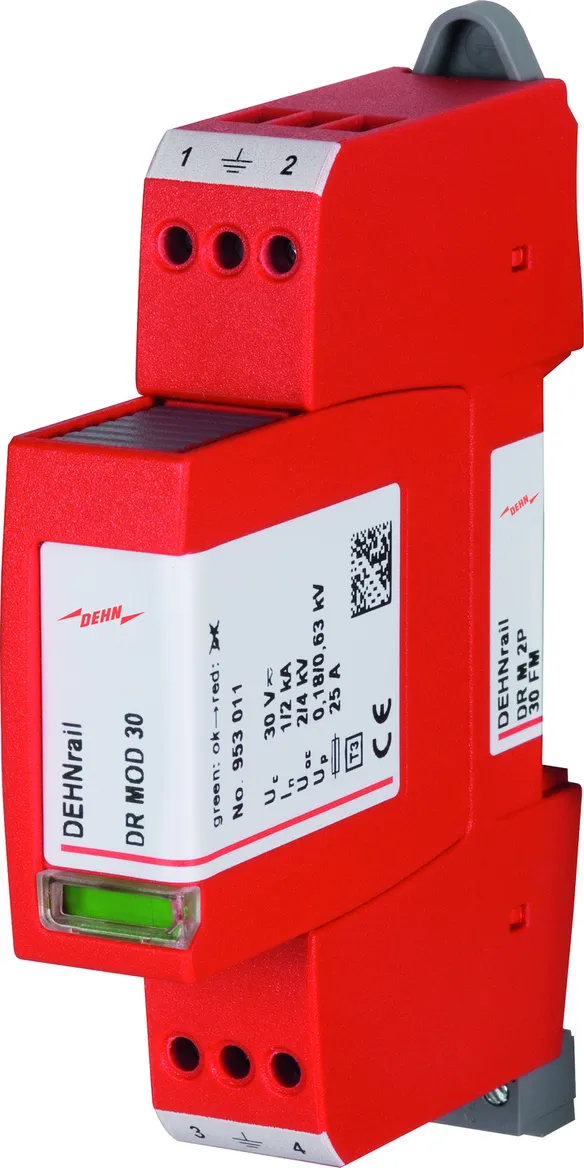

DEHNrail M 2P 30 FM surge arrester
Modular and pluggable two-pole surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 30 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.18 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 30 FM
Part No.: 953206
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 30 V
Nominal discharge current (8/20 µs) (In ) 1 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 2 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 180 / ≤ 630 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Product 953206 was added to Notepad.

Product 953206 was added to the cart.

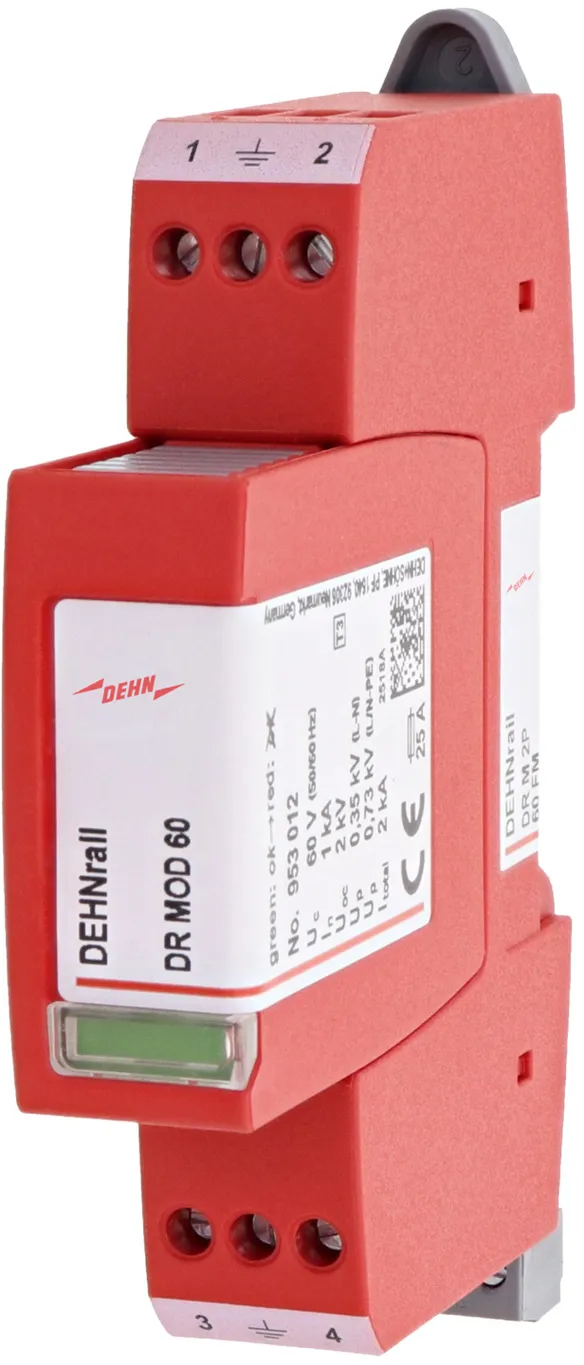

Part No. 953207 DR M 2P 60 FM

GTIN 4013364109728, Customs tariff No. (EU): 85363030, Gross weight: 95.40 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Two-pole DEHNrail M 2P 60 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 60 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.35 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 60 FM
Part No.: 953207
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 60 V
Nominal discharge current (8/20 µs) (In ) 1 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 2 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 350 / ≤ 730 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Product 953207 was added to Notepad.

Product 953207 was added to the cart.

Part No. 953208 DR M 2P 75 FM

GTIN 4013364109735, Customs tariff No. (EU): 85363030, Gross weight: 93.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Two-pole DEHNrail M 2P 75 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.4 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 75 FM
Part No.: 953208
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 75 V
Nominal discharge current (8/20 µs) (In ) 2 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 4 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 400 / ≤ 730 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Product 953208 was added to Notepad.

Product 953208 was added to the cart.

Part No. 953209 DR M 2P 150 FM

GTIN 4013364109742, Customs tariff No. (EU): 85363030, Gross weight: 93.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

DEHNrail M 2P 150 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.64 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Fault indication

Brand: DEHN
Type: DR M 2P 150 FM
Part No.: 953209
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 150 V
Nominal discharge current (8/20 µs) (In ) 2 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 4 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 640 / ≤ 800 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Product 953209 was added to Notepad.

Product 953209 was added to the cart.

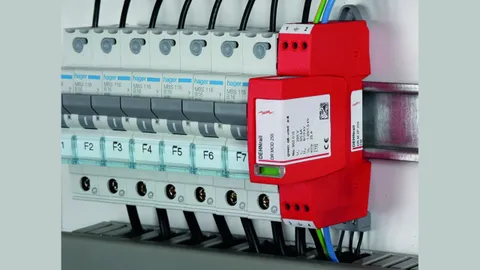

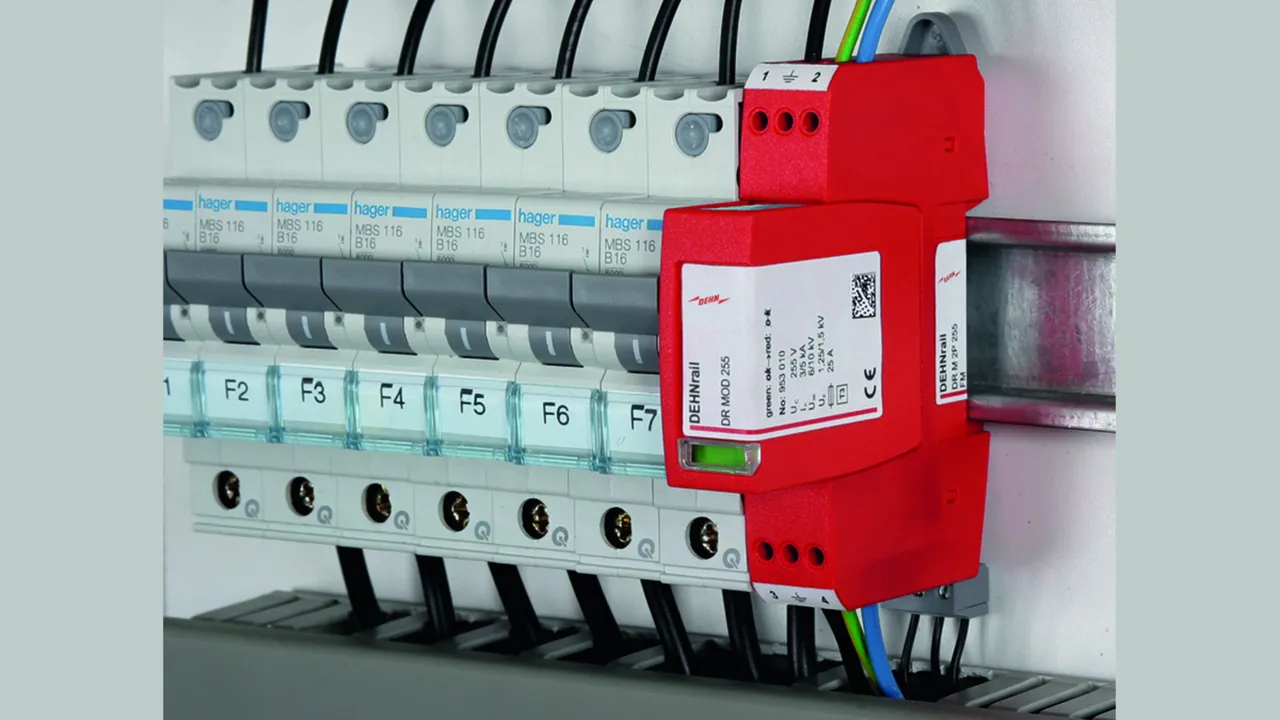

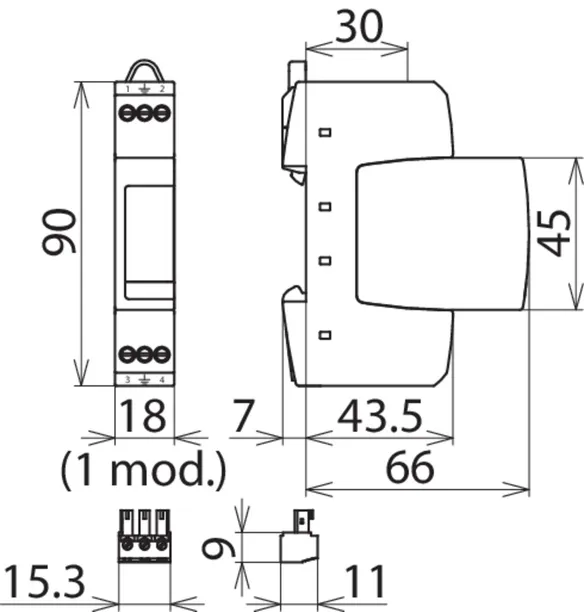

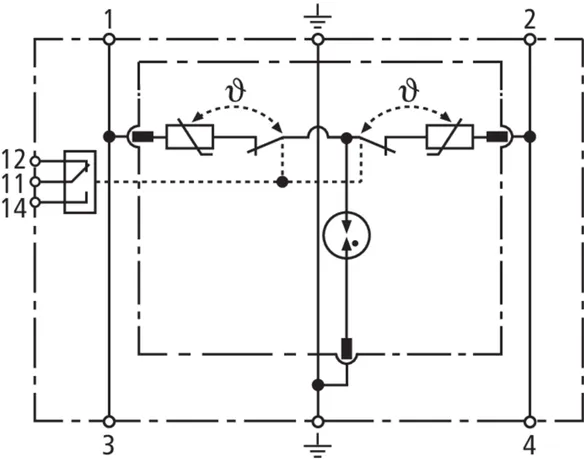

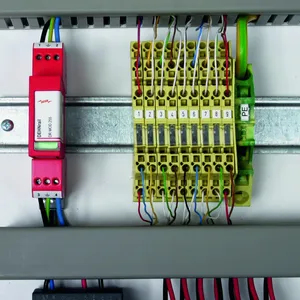

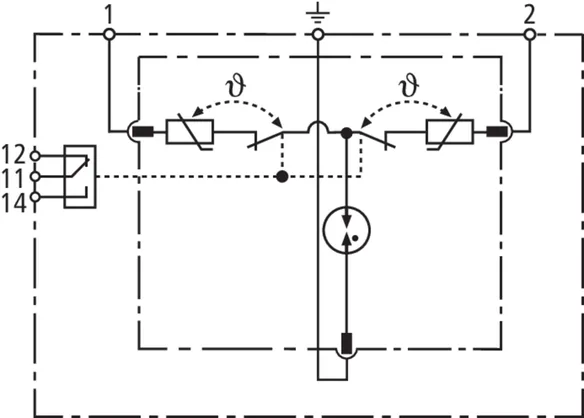

Part No. 953205 DR M 2P 255 FM

GTIN 4013364108318, Customs tariff No. (EU): 85363030, Gross weight: 98.88 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

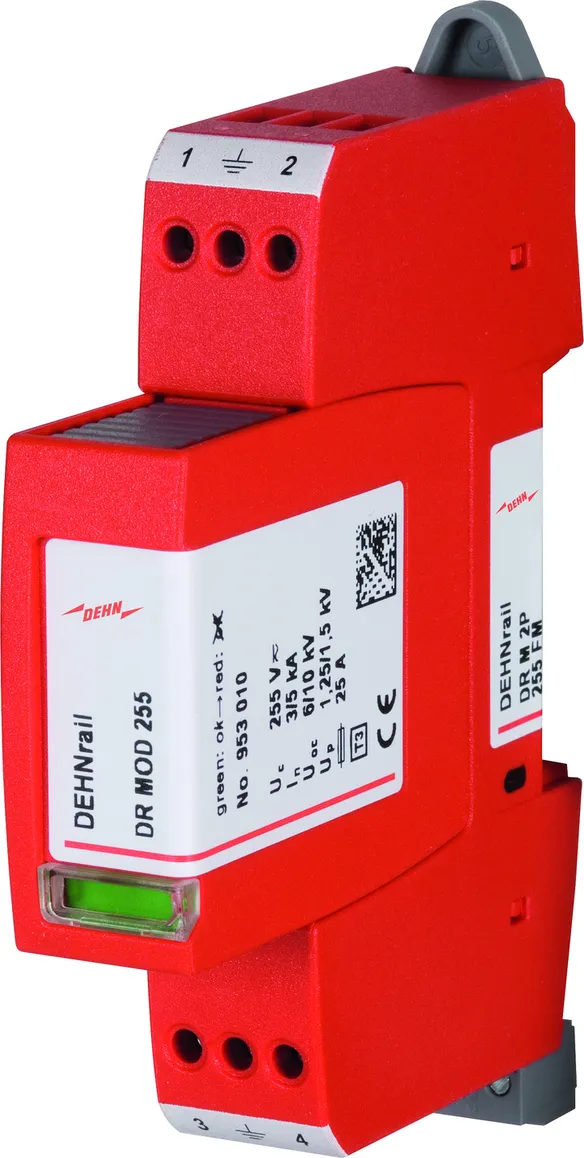

Two-pole DEHNrail M 2P 255 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 255 V a.c./d.c.
Total discharge current: 5 kA
Voltage protection level (L/N): < 1.25 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 255 FM
Part No.: 953205
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 255 V
Nominal discharge current (8/20 µs) (In ) 3 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 5 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection 25 A gG or B 25 A
Approvals KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact changeover contact

Product 953205 was added to Notepad.

Product 953205 was added to the cart.


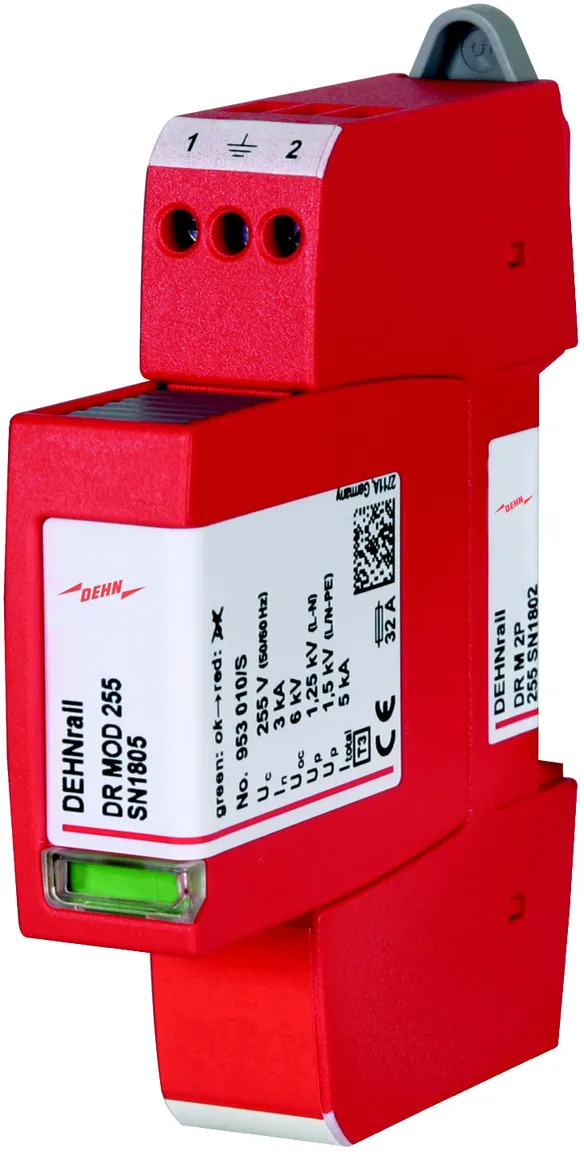

DEHNrail M 2P SN1802

Two-pole surge arrester consisting of a base part and a plug-in protection module. Can be used for systems with a load current up to 32 A.

1 Product

Part No. 953228 DR M 2P 255 SN1802

GTIN 4013364158986, Customs tariff No. (EU): 85363030, Gross weight: 89.70 g, PU: 1.00 pc(s)


Images

Additional information

DEHNrail M 2P 255 SN1802 surge arrester
2-pole modular pluggable surge arrester
for protecting industrial electronic terminal devices
Width: 1 module, Fault indication
Arrester Type 3 acc- to EN 61643-11
Max. contin. operating voltage: 255 V ac/dc
Total discharge current: 5 kA
Protection level L/N: < 1.25 kV
Backup fuse: 32 A gG or B 32 A
Energy-coordinated acc. to IEC 62305-4
with arrester of the Red/Line family

Brand: DEHN
Type: DR M 2P 255 SN1802
Part No.: 953228
or equivalent.



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 255 V
Nominal discharge current (8/20 µs) (In ) 3 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 5 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection 32 A gG or B 32 A
Protection module upon request

Product 953228 was added to Notepad.

Product 953228 was added to the cart.


DEHNrail M 2P SN1803FM

Two-pole surge arrester consisting of a base part and a plug-in protection module; with floating remote signalling contact. Can be used for systems with a load current up to 32 A.

1 Product

Part No. 953229 DR M 2P 255 SN1803FM

GTIN 4013364158993, Customs tariff No. (EU): 85363030, Gross weight: 93.40 g, PU: 1.00 pc(s)


Images

Additional information

DEHNrail M 2P 255 SN1803FM surge arrester
2-pole modular pluggable surge arrester
for protecting industrial electronic terminal devices
Width: 1 module, Fault indication
With remote signalling contact
Arrester Type 3 acc. to EN 61643-11
Max. cont. operating voltage: 255 V ac/dc
Total discharge curremt: 5 kA
Protection level L/N: < 1.25 kV
Backup fuse: 32 A gG or B 32 A
Energy-coordinated acc. to IEC 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DR M 2P 255 SN1803FM
Part No.: 953229
or equivalent.



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 3 / class III
Max. continuous operating voltage (a.c.) (UC ) 255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (UC ) 255 V
Nominal discharge current (8/20 µs) (In ) 3 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal ) 5 kA
Voltage protection level [L-N] / [L/N-PE] (UP ) ≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection 32 A gG or B 32 A
Type of remote signalling contact changeover contact
Protection module upon request

Product 953229 was added to Notepad.

Product 953229 was added to the cart.


back to top
